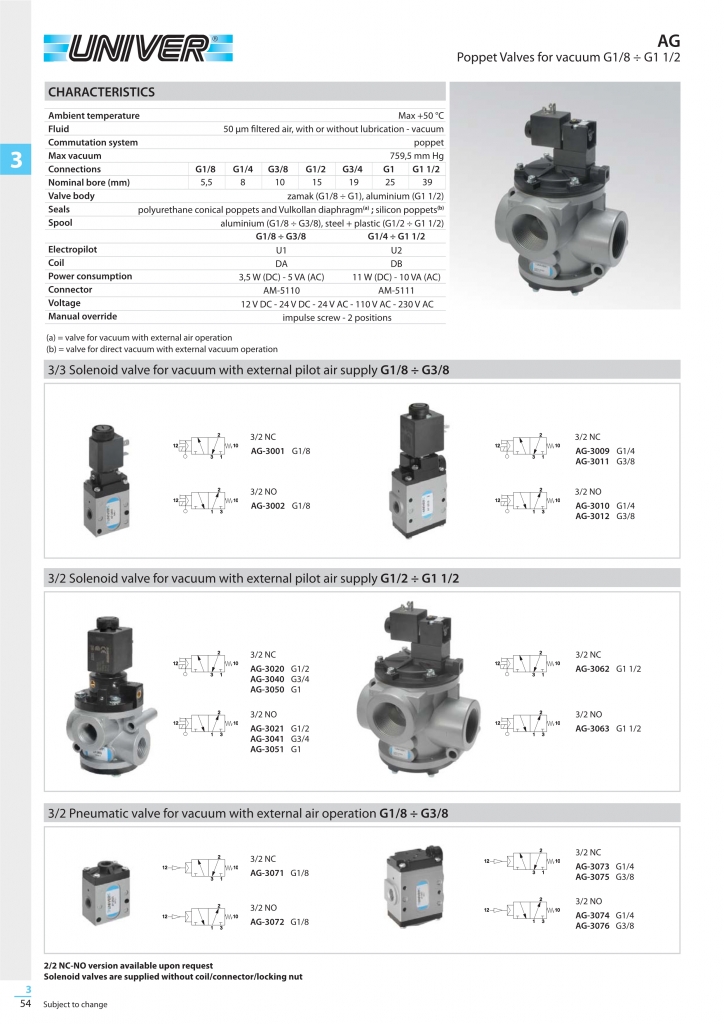

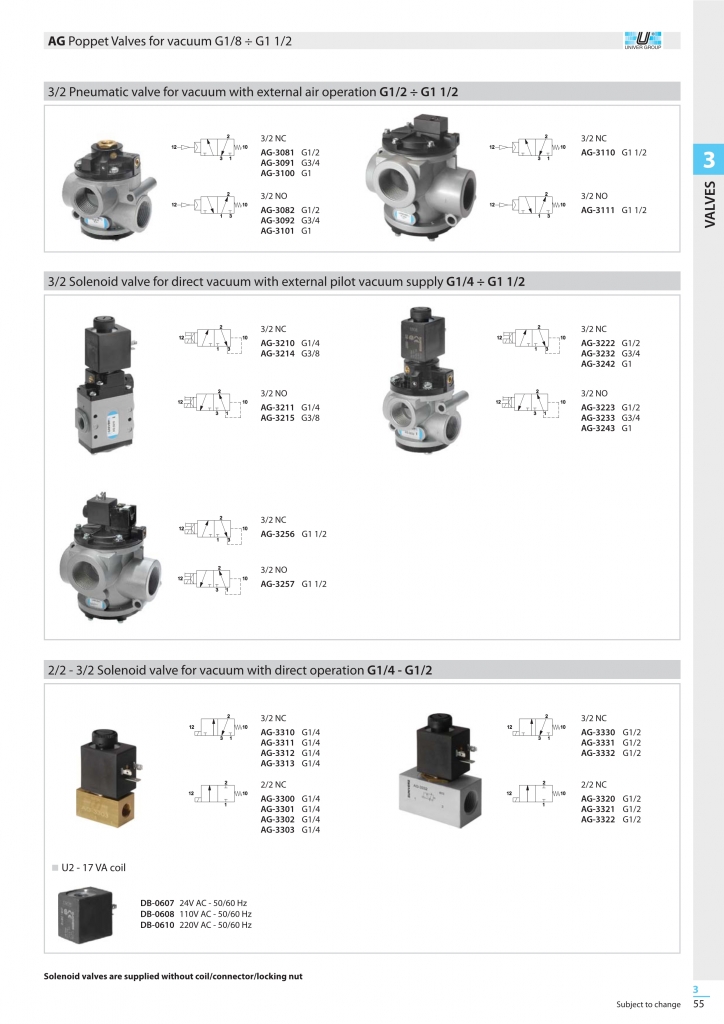

SERIES AG Poppet valve for vacuum 3/2 – G1/8” ÷ G 1½”
这些阀门的生产范围从G 1/8到G 1 1/2,特别适用于需要高流速和高循环速率的应用。久经考验的锥阀系统以极具竞争力的价格保证了高性能。
Body | die-cast zamak; die-cast aluminium |
x | for G1 1/2 |
Internal system poppet and vulkollan diaphragm | |
Working pressure | max. 10 bar |
Ambient temperature | 5 ÷ 50 °C |
Fluid | filtered air 50 ìm lubricated or non |
x | lubricated or neutral gases |
Fluid temperature | 5÷60°C |
Nominal diameter | 5,5÷39 mm AF-AG/VS series |
x | 8÷39 mm AG/VDA series |
Flow rate | 580÷35000 Nl/min AF-AG/VS series |
Pump max. m3/h | 4÷100 AG/VDA series |
Control | electro-pneumatic indirect (AF-AG/VDA series); |
x | with indirect vacuum (AG/VDA series) |
AG-3001 , AG-3002 , AG-3003 , AG-3003A , AG-3004 , AG-3005 , AG-3005A , AG-3006 , AG-3009 , AG-3010 , AG-3011 , AG-3012 , AG-3020 , AG-3021 , AG-3022 , AG-3023 , AG-3040 , AG-3040A , AG-3041 , AG-3041A , AG-3042 , AG-3043 , AG-3050 , AG-3051 , AG-3051A , AG-3053 , AG-3054 , AG-3060 , AG-3061 , AG-3062 , AG-3063 , AG-3065 , AG-3071 , AG-3072 , AG-3073 , AG-3074 , AG-3075 , AG-3076 , AG-3081 , AG-3082 , AG-3091 , AG-3092 , AG-3100 , AG-3101 , AG-3110 , AG-3111 , AG-3202 , AG-3203 , AG-3206 , AG-3207 , AG-3210 , AG-3211 , AG-3214 , AG-3215 , AG-3222 , AG-3223 , AG-3232 , AG-3233 , AG-3242 , AG-3243 , AG-3252 , AG-3253 , AG-3256 , AG-3257 , AG-3300 , AG-3301 , AG-3302 , AG-3303 , AG-3310 , AG-3311 , AG-3312 , AG-3313 , AG-3320 , AG-3321 , AG-3322 , AG-3330 , AG-3331 , AG-3332,AG-9605,AG-9610,AG-9615,AG-9625,AG-9635,AG-9640,AG-9645,AG-9650,AG-9655,AG-9660,AG-9665,AG-9670,AG-9675,AG-9680,AG-9685,AG-9690,AG-9695,AG-9700,AG-9705,AG-9710,AG-9715,AG-9720,AG-9750,AG-9751,AG-9755,AG-9760,AG-9765,AG-9770,AG-9775,AG-9780,AG-9785,AG-9790,AG-9795,AG-9805,AG-9810,AG-9815,AG-9820,AG-9830,AG-9835,AG-9840,AG-9845
