提到UNIVER提升阀，如虹精工(厦门)电子科技有限公司可以了解一下。如虹精工专业代理销售UNIVER电磁阀!诚信经营!欢迎咨询,我们将诚挚为您服务.
如虹精工为您提供最新的UNIVER电磁阀详细参数、UNIVER电磁阀实时报价、UNIVER提升阀库存情况等

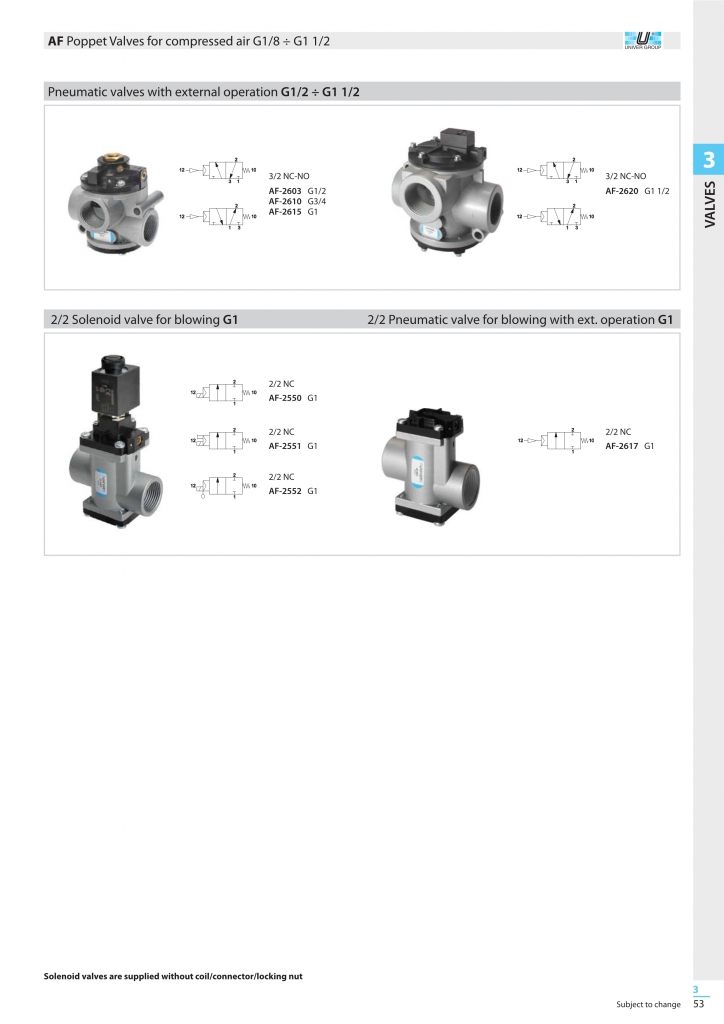

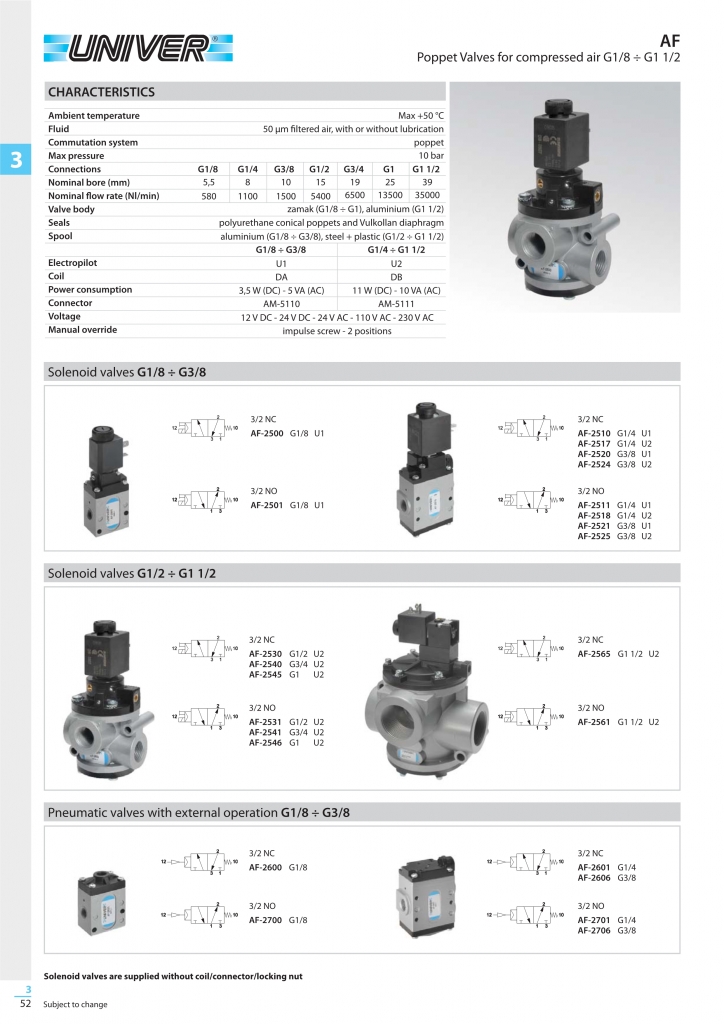

UNIVER电磁阀 SERIES AF 压缩空气提升阀3 / 2- G1 / 8“÷G1½”
这些阀门的生产范围从G 1/8到G 1 1/2，特别适用于需要高流速和高循环速率的应用。久经考验的锥阀系统以极具竞争力的价格保证了高性能。
| Body | die-cast zamak; die-cast aluminium |
| x | for G1 1/2 |
| Internal system poppet and vulkollan diaphragm | |
| Working pressure | max. 10 bar |
| Ambient temperature | 5 ÷ 50 °C |
| Fluid | filtered air 50 ìm lubricated or non |
| x | lubricated or neutral gases |
| Fluid temperature | 5÷60°C |
| Nominal diameter | 5,5÷39 mm AF-AG/VS series |
| x | 8÷39 mm AG/VDA series |
| Flow rate | 580÷35000 Nl/min AF-AG/VS series |
| Pump max. m3/h | 4÷100 AG/VDA series |
| Control | electro-pneumatic indirect (AF-AG/VDAseries); |
| x | with indirect vacuum (AG/VDA series) |
| Return | pneu-mechanical spring (AF series); |
| x | mechanical spring (AG/VS series); |
| x | automatic with vacuum (AG/VDA series) |
| Coils | DA…/DB…/DC… series |
UNIVER提升阀常规型号:AF-2500 , AF-2500A , AF-2500R , AF-2501 , AF-2501R , AF-2510 , AF-2510A , AF-2511 , AF-2515 , AF-2516 , AF-2517 , AF-2518 , AF-2520 , AF-2520A , AF-2521 , AF-2522 , AF-2523 , AF-2524 , AF-2525 , AF-2530 , AF-2530A , AF-2531 , AF-2532 , AF-2532A , AF-2540 , AF-2540A , AF-2541 , AF-2541A , AF-2542 , AF-2542A , AF-2545 , AF-2545A , AF-2546 , AF-2547 , AF-2550 , AF-2550K , AF-2551 , AF-2552 , AF-2560 , AF-2561 , AF-2563 , AF-2565 , AF-2567 , AF-2600 , AF-2601 , AF-2601D , AF-2603 , AF-2603A , AF-2606 , AF-2606D , AF-2610 , AF-2610A , AF-2615 , AF-2615A ,, AF-2617 , AF-2620 , AF-2700 , AF-2701 , AF-2706,AF-9605,AF-9610,AF-9615,AF-9620,AF-9625,AF-9655,AF-9660,AF-9665,AF-9670,AF-9675,AF-9705,AF-9706,AF-9707,AF-9708,AF-9709,AF-9710,AF-9750,AF-9751,AF-9752,AF-9753,AF-9755,AF-9760,AF-9765,AF-9770,AF-9775,AF-9780,AF-9785,AF-9790,AF-9795,AF-9990-40,AF-9990-40
