提到UNIVER限位开关,如虹精工(厦门)电子科技有限公司可以了解一下。如虹精工专业代理销售UNIVER电磁阀!诚信经营!欢迎咨询,我们将诚挚为您服务. 如虹精工为您提供最新的UNIVER电磁阀详细参数、UNIVER电磁阀实时报价、UNIVER限位开关库存情况等

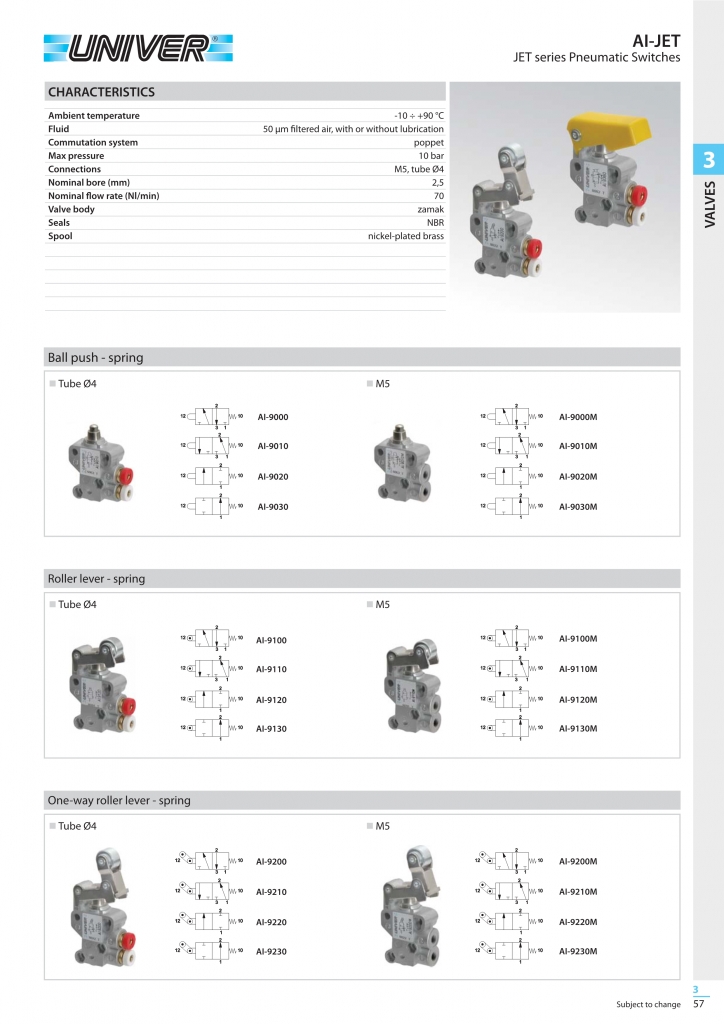

JET and miniature pneumatic limit switches 2/2 – 3/2

UNIVER JET pneumatic switches have been designed to meet the ever increasing need to save space without compromising on performance or reliability. Available in two port options, M5 threaded, or quick couplings Ø (4 x 2) for quick assembly porposes.
The limit-switches, mounted on sub-bases with threaded connections or with quick couplings, may be combined with different types of manual operators for panel mounting complying with the various needs of the plant. It can also be used as an operator on indirectly operated 3 and 5-port valves where a sensitive control is required.

Body die-cast alloy
Working pressure max. 10 bar
Ambient temperature -10 ÷ 90 °C
Fluid lubricated or non lubricated air
Nominal diameter 2,5 mm (JET) – 2,3 mm miniature limit switch
w (sensitive type 1,5)
Flow rate 98 Nl/min (JET) – 110 Nl/min
wW (miniaturized limit switch)
wW M5 thread or push-in fittings Ø 4×2 pipe (JET)
W Assembly on base (miniaturized limit switch)

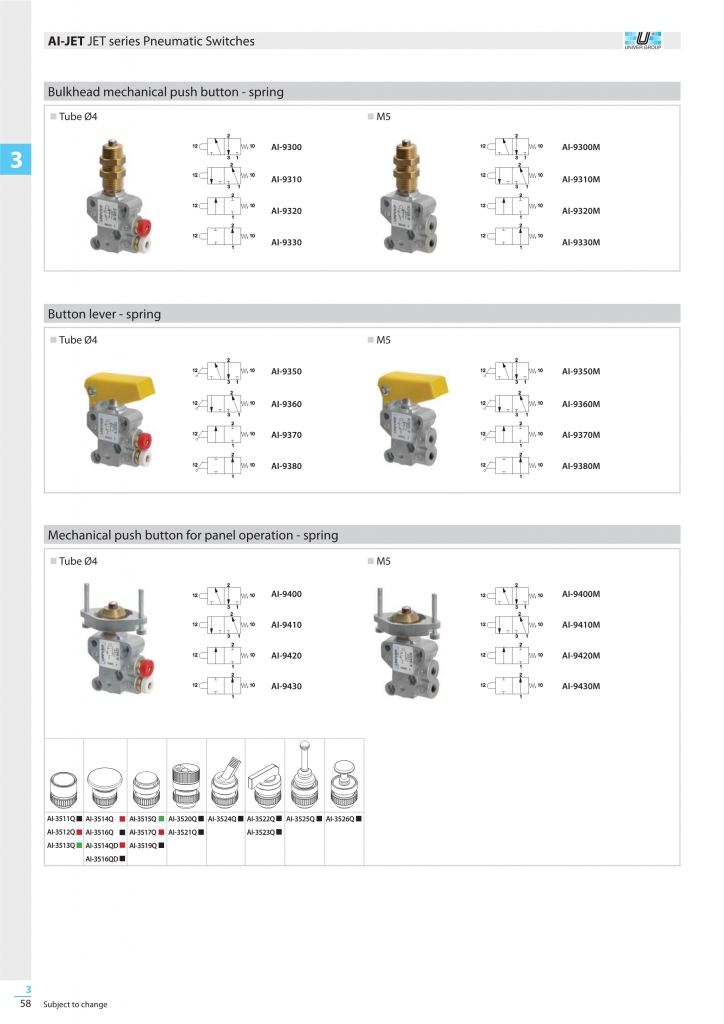

UNIVER微型气动限位开关部分常规型号参考:AI-9000 , AI-9010 , AI-9020 , AI-9030 , AI-9000M , AI-9010M , AI-9020M , AI-9030M , AI-9100 , AI-9110 , AI-9120 , AI-9130 , AI-9100M , AI-9110M , AI-9120M , AI-9130M , AI-9200 , AI-9210 , AI-9220 , AI-9230 , AI-9200M , AI-9210M , AI-9220M , AI-9230M , AI-9300 , AI-9310 , AI-9320 , AI-9330 , AI-9300M , AI-9310M , AI-9320M , AI-9330M , AI-9350 , AI-9360 , AI-9370 , AI-9380 , AI-9350M , AI-9360M , AI-9370M , AI-9380M , AI-9400 , AI-9410 , AI-9420 , AI-9430 , AI-9400M , AI-9410M , AI-9420M , AI-9430M
