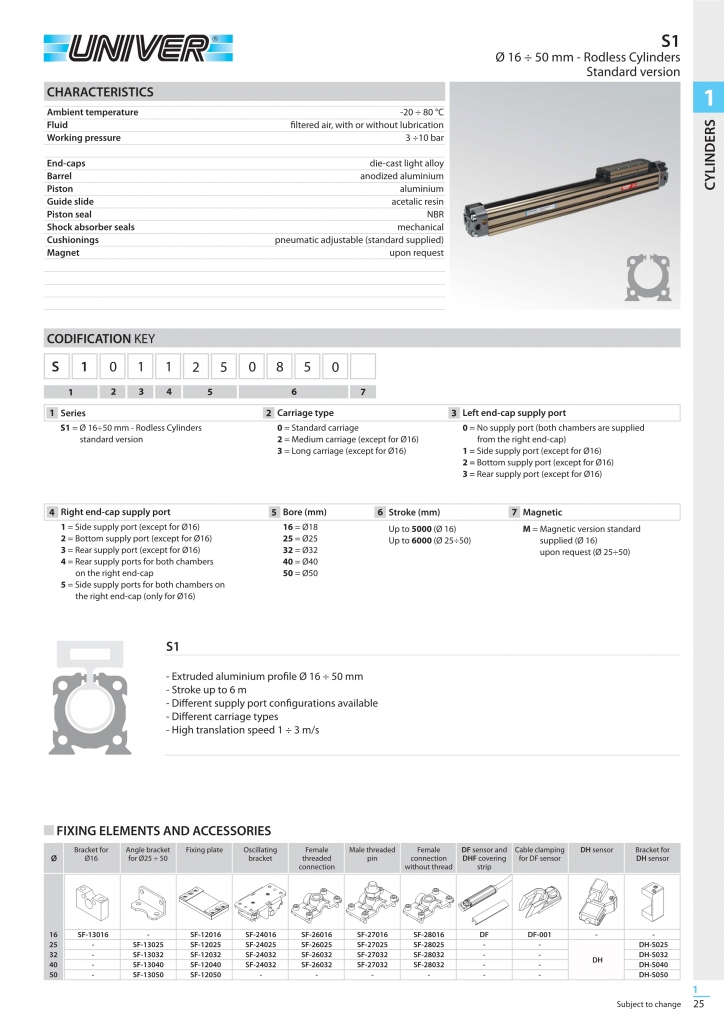

SERIES S1 Rodless cylinders Ø 16-50 mm
Series S is the original Univer cylinder, and provides the most versatile range for solving the problems of automation and positioning control. Rodless cylinders are available with both single chambers and integrated guides.
| Working pressure | 3÷10 bar |
| Ambient temperature | -20 ÷ 80 °C |
| Fluid | filtered air, also without lubrication up to stroke 500 mm |
| Barrel | aluminium extrusion |
| End-caps | aluminium die-cast |
| Piston-carriage group | aluminium extrusion with rubber seals |
| Seal system | internal strip in elastomer reinforced with Kevlar, |
| X | external strip in thermoplastic reinforced with Kevlar |
| Magnetic version | S1: standard for Ø 16 mm: upon request for Ø 25-50 mm |
